Product Introduction
DONGSUN SYNTHETIC FIBER

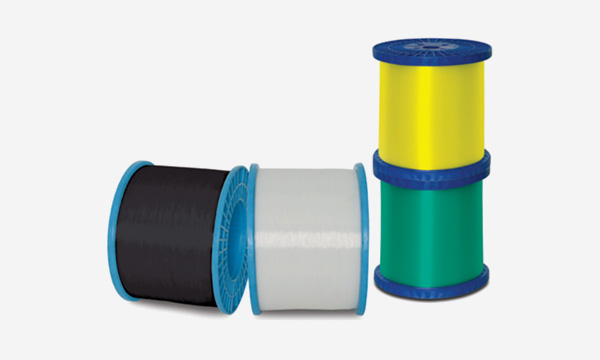

DONGSUN MONO
1. Product Features
- High strength/High heat resistance
- Anti-static product (Suitable for insulator applications)
- Possible to manufacture low contraction yarn
- Possible to manufacture low absorption yarn
- Applications : Zipper, Electrical Resistance, Canvas, Brush, Seat belt, Conveyor Belt, Glass Greenhouses, Reinforcement of Fire hose, Shoe Paper, Screen Membrane, Insect Screen, Home Appliance Tube, Automobile Internal Combustion Engine, Filter, Guitar String, Tennis Racket String, Car Ventilation Seat, Stroller Seat, Golf Course Cart Seat, etc.
2. Specifications
| Size (Denier) | Color | Strength | Elongation | Shrinkage (Dry Contraction 180°C, 3Minutes) |
|---|---|---|---|---|
| 0.08~2.00mm (63~22,254 Denier) |
Natural/Black/Color | 4.0~7.0 GPD | 20~35% | 2~10% |
3. Applications
-
Tube
-
Insect Screen
-
Shoe Paper
-
Mat
-

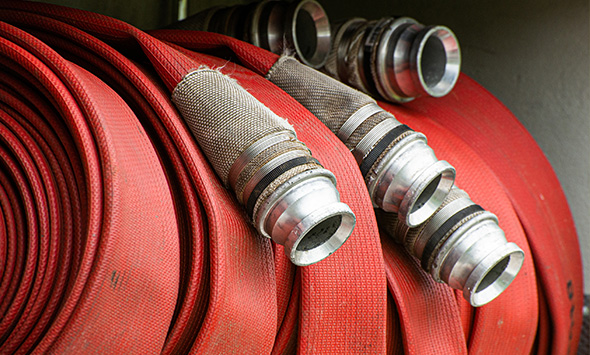

Fire Hose
-
Safety Belt
4. Packing
| Method of Packaging | Product | Bobbin Type | Winding methodper Bobbin | Bobbin/Box | Weight Per Box | ||
|---|---|---|---|---|---|---|---|
| Polyester | For Zipper | Plastic H Bobbin | 10~15KG | 2Bobbins / Box | 20~30KG | ||
| For Textile | Plastic H Bobbin | 5KG | 4Bobbins / Box | 20KG | |||
| Steel Bobbin | 2.08KG | 12 Bobbins / Box | 25KG | ||||
| Polypropylene | For Textile | Plastic H Bobbin | 4KG | 4 Bobbins / Box | 16KG | ||
| Steel Bobbin | 1.66KG | 12 Bobbins / Box | 20KG | ||||
| Nylon | For Textile | Plastic H Bobbin | 5KG | 4 Bobbins / Box | 20KG | ||
| Steel Bobbin | 2.08KG | 12 Bobbins / Box | 25KG | ||||
| Container Loading Method |
Container Size | Product | Bobbin Type | Loading Box | Bobbin Quantity | Loading Quantity (Based on Net Weight) |
|
| 20FT | Polyester | For Zipper | Plastic H Bobbin | 450Boxes | 900Bobbins | 9,000KG +/- 5% |
|
| For Textile | Steel Bobbin | 280 Boxes | 3,360 Bobbins | 7,000KG +/- 5% |
|||
| Polypropylene | For Textile | Plastic H Bobbin | 20 Boxes | 1,800 Bobbins | 7,200KG +/- 5% |
||
| Steel Bobbin | 280 Boxes | 3,360 Bobbins | 5,600KG +/- 5% |
||||
| Nylon | For Textile | Plastic H Bobbin | 20 Boxes | 1,800 Bobbins | 9,000KG +/- 5% |
||
| Steel Bobbin | 280 Boxes | 3,360 Bobbins | 7,000KG +/- 5% |
||||
| 40HQ | Polyester | For Zipper | Plastic H Bobbin | 1,000 Boxes | 2,000 Bobbins | 20,000KG +/- 5% |
|
| For Textile | Steel Bobbin | 600 Boxes | 7,200 Bobbins | 15,000KG +/- 5% |
|||
| Polypropylene | For Textile | Plastic H Bobbin | 40 Boxes | 3,600 Bobbins | 15,000KG +/- 5% |
||
| Steel Bobbin | 600 Boxes | 7,200 Bobbins | 12,000KG +/- 5% |
||||
| Nylon | For Textile | Plastic H Bobbin | 40 Boxes | 3,600 Bobbins | 18,000KG +/- 5% |
||
| Steel Bobbin | 600 Boxes | 7,200 Bobbins | 15,000KG +/- 5% |
||||
1. Product Features
- High strength/High heat resistance
- Anti-static product (Suitable for insulator applications)
- Possible to manufacture low contraction yarn
- Possible to manufacture low absorption yarn
- Applications : Clothing, Sports, Outdoor, Tent and Various Zippers, etc.
2. Specifications
| Size (Denier) | Color | Strength | Elongation | Shrinkage (Dry Contraction 180°C, 3Minutes) |
|---|---|---|---|---|
| 0.08~2.00mm (63~22,254 Denier) |
Natural/Black/Color | 4.0~7.0 GPD | 20~35% | 2~10% |
3. Applications
-
Zipper
-
Zipper
4. Packing
| Method of Packaging | Product | Bobbin Type | Winding methodper Bobbin | Bobbin/Box | Weight Per Box | ||
|---|---|---|---|---|---|---|---|
| Polyester | For Zipper | Plastic H Bobbin | 10~15KG | 2Bobbins / Box | 20~30KG | ||
| For Textile | Plastic H Bobbin | 5KG | 4Bobbins / Box | 20KG | |||
| Steel Bobbin | 2.08KG | 12 Bobbins / Box | 25KG | ||||
| Polypropylene | For Textile | Plastic H Bobbin | 4KG | 4 Bobbins / Box | 16KG | ||
| Steel Bobbin | 1.66KG | 12 Bobbins / Box | 20KG | ||||
| Nylon | For Textile | Plastic H Bobbin | 5KG | 4 Bobbins / Box | 20KG | ||
| Steel Bobbin | 2.08KG | 12 Bobbins / Box | 25KG | ||||
| Container Loading Method |
Container Size | Product | Bobbin Type | Loading Box | Bobbin Quantity | Loading Quantity (Based on Net Weight) |
|
| 20FT | Polyester | For Zipper | Plastic H Bobbin | 450Boxes | 900Bobbins | 9,000KG +/- 5% |
|
| For Textile | Steel Bobbin | 280 Boxes | 3,360 Bobbins | 7,000KG +/- 5% |
|||
| Polypropylene | For Textile | Plastic H Bobbin | 20 Boxes | 1,800 Bobbins | 7,200KG +/- 5% |
||
| Steel Bobbin | 280 Boxes | 3,360 Bobbins | 5,600KG +/- 5% |
||||
| Nylon | For Textile | Plastic H Bobbin | 20 Boxes | 1,800 Bobbins | 9,000KG +/- 5% |
||
| Steel Bobbin | 280 Boxes | 3,360 Bobbins | 7,000KG +/- 5% |
||||
| 40HQ | Polyester | For Zipper | Plastic H Bobbin | 1,000 Boxes | 2,000 Bobbins | 20,000KG +/- 5% |
|
| For Textile | Steel Bobbin | 600 Boxes | 7,200 Bobbins | 15,000KG +/- 5% |
|||
| Polypropylene | For Textile | Plastic H Bobbin | 40 Boxes | 3,600 Bobbins | 15,000KG +/- 5% |
||
| Steel Bobbin | 600 Boxes | 7,200 Bobbins | 12,000KG +/- 5% |
||||
| Nylon | For Textile | Plastic H Bobbin | 40 Boxes | 3,600 Bobbins | 18,000KG +/- 5% |
||
| Steel Bobbin | 600 Boxes | 7,200 Bobbins | 15,000KG +/- 5% |
||||
